px789rex |90度Rapidex屏障联盟提供黄铜,镀镍黄铜,铝和不锈钢

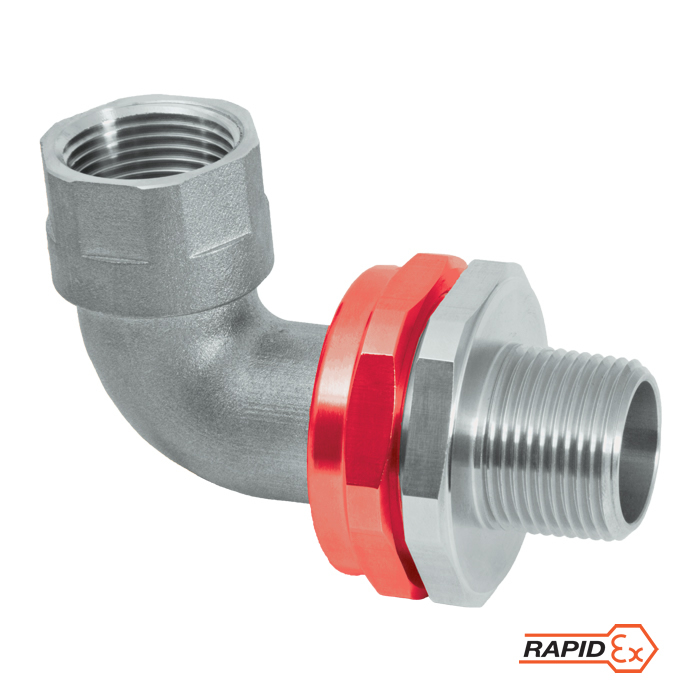

90° Union, Globally Approved, Explosive Atmosphere Barrier Cable / Conduit Accessory

  • RapidEx liquid pour sealing system
    •提高可靠性,降低风险
    •减少男子时间
    •降低成本
  • Allows the connection of conduit or glands to equipment
  • Suitable for rigid or flexible conduit
  • Integral coupling eliminates the need to rotate the conduit
  • 可提供通用/工业版
  • Equipment interface ‘O’ ring seal available
  • -60˚C to +85˚C
  • 全球标记,IECEx,ATEX&CCSAUS

Note:可用的男性到男性或女性到女性线程选择。

可提供设备接口的“O”环密封。对于此类选项,请在上面的订购引用中的类型编号后添加后缀字母“R”,例如,PX789REXRDM2M2。

对于环氧树脂复合版,请从订购引用中删除“rex”。

If 2 separate enclosures are required to be connected together please contact CMP Products.

Выданные патенты: DE 2287986, ES 2287986, FR 2287986, IT 2287986, NL 2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, CA 2771713, GB 2485114, MY 153846, SG 178839, US 8872027, US 9484133, US 9774178

BS 6121:Part 1:1989, IEC 62444, EN 62444
IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
CML 18ATEX1329U
II 2 GD EX D IIC GB,EX E IIC GB,EX TA IIIC DA IP6x
IM2前II MB / EX E I MB
EN.60079-0,1,7,31
IECEx CML 18.0186U
ex d iic gb那Ex e IIC Gb, Ex d I Mb, Ex e I Mb, Ex ta IIIC Da IP6X
IEC 60079-0,1,7,31
1055233
I级,Div 1和2,A组,B,C,D;机箱类型4x:I类,1,AEX DE II;ex de II
C22.2 No.0,0.5,30,94,CAN / CSA E60079-0,1,7,CAN / CSA E61241-1,UL STD 50,1203,UL 60079-0,1,7
Tc ru c-gb.гб05.b00138
TÜV12.1334U.
IP66 when fitted with a CMP ‘O’ ring or Entry Thread Seal**
黄铜(标准),化学镀镍黄铜,铝,不锈钢

**Refer toMaintaining a Sealfor further information on Ingress Protection Ratings

Product Selection Table

Click hereto view Technical Illustration

技术插图

Click here查看如何订购

公制 NPT 直径在核心“C”上 Max. Number of Cores 最大突出长度“D” Max Overhand Length "F" Across Flats Hex "G" 横跨角落Ø“g” 安装扭矩(nm)
Ordering Reference (Brass, Metric) Male Forward Thread Size "A" Minimum Thread Length "E" Female Rear Thread Size "B" Ordering Reference (Brass, NPT) Male Forward NPT Thread Size "A" Minimum NPT Thread Length "E" (in) Female Rear Thread Size "B"
PX789REXDM2M2 M20 X 1.5 0..591 M20 X 1.5 px789rexdt1t1. 1/2“ 0.79 1/2“ 0.496 11 2.476 2.512 1.811 1.992 7.
PX789REXDM3M3 M25 x 1.5 0..591 M25 x 1.5 PX789REXDT2T2 3/4" 0.80 3/4" 0.689 21 2.780 2.736 1.969 2.165 10.
PX789REXDM4M4 M32 X 1.5 0..591 M32 X 1.5 px789rexdt3t3. 1" 0.98 1" 0..929 38 2.980 3.071 2.362 2.598 15
PX789REXDM5M5 M40 X 1.5 0..591 M40 X 1.5 px789rexdt4t4. 1-1/4" 1.01 1-1/4" 1.181 59 3.295 3.339 2.559 2.815 25
PX789REXDM6M6 M50 X 1.5 0..591 M50 X 1.5 PX789REXDT5T5 1-1/2" 1.03 1-1/2" 1.614 89 3.776 3.791 2.953 3.248 30
PX789REXDM7M7 M63 x 1.5 0..591 M63 x 1.5 PX789REXDT6T6 2" 1.06 2" 2.114 115 4.283 4.531 3.551 3.906 35
All dimensions shown are in inches unless otherwise stated
公制 NPT 直径在核心“C”上 Max. Number of Cores 最大突出长度“D” Max Overhand Length "F" Across Flats Hex "G" 横跨角落Ø“g” 安装扭矩(nm)
Ordering Reference (Brass, Metric) Male Forward Thread Size "A" Minimum Thread Length "E" Female Rear Thread Size "B" Ordering Reference (Brass, NPT) Male Forward NPT Thread Size "A" Minimum NPT Thread Length "E" (in) Female Rear Thread Size "B"
PX789REXDM2M2 M20 X 1.5 15.0 M20 X 1.5 px789rexdt1t1. 1/2“ 0.79 1/2“ 12.6 11 62.9 63.8 46.0 50.6 7.
PX789REXDM3M3 M25 x 1.5 15.0 M25 x 1.5 PX789REXDT2T2 3/4" 0.80 3/4" 17..5 21 7.0..6 69.5 50.0 55.0 10.
PX789REXDM4M4 M32 X 1.5 15.0 M32 X 1.5 px789rexdt3t3. 1" 0.98 1" 23.6 38 75.7 78.0 60.0 66.0 15
PX789REXDM5M5 M40 X 1.5 15.0 M40 X 1.5 px789rexdt4t4. 11/4" 1.01 11/4" 30.0 59 83.7 84.8 65.0 7.1.5 25
PX789REXDM6M6 M50 X 1.5 15.0 M50 X 1.5 PX789REXDT5T5 11/2“ 1.03 11/2“ 41.0 89 95.9 96.3 75.0 82.5 30
PX789REXDM7M7 M63 x 1.5 15.0 M63 x 1.5 PX789REXDT6T6 2" 1.06 2" 53.7 115 10.8.8 115.1. 90.2 99.2 45
除非另有说明,否则所示的所有尺寸为毫米
