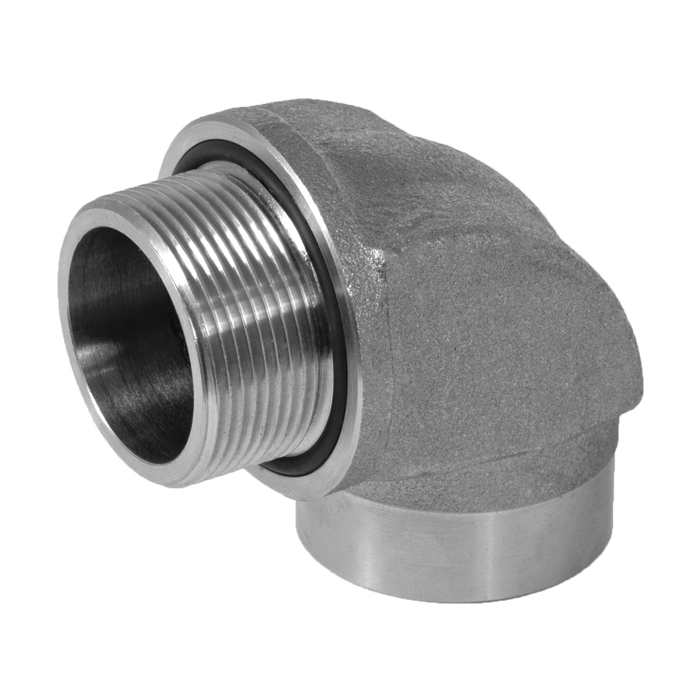

90° 适配器,全球认可,爆炸性环境电缆/导管附件
•保护电缆免受过度弯曲应力
•提供通用/工业版
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface ‘O’ ring seal available
• -60˚C to +200˚C
•全球标记、IECEx、ATEX和cCSAus
•可用于737(非Ex d直接进入应用)
BS 6121:Part 1:1989, IEC 62444, EN 62444 | |
IK10 to IEC 62262 (20 joules) Brass & Stainless Steel Only | |
CML 18ATEX1319U | |
II 2 G Ex d IIC Gb,Ex e IIC Gb, II 1 D Ex ta IIIC Da IM2 Ex d I Mb,Ex e I Mb |
|
ZH60079-0,1,7,31 | |
IECEx CML 18.0176U | |
Ex d I Mb/ Ex e I Mb/ Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da | |
IEC 60079-0,1,7,31标准 | |
1055233 | |
Class I, Groups A, B, C and D; IP66, 67, 68; Enclosure Type 4X; Ex de II, Class I, Zone 1, AEx de II; | |
C22.2编号0,0.5-M1982,30,94,CAN/CSA E60079-0,1,7,UL 50,第11版,UL 1203,第4版, UL 60079-0,1,7标准 |
|
TC RU C-GB。ГБ05.B00138号 | |
gyj13.1142x. | |
TÜV 12.1335库存 | |
03866 | |
LRS:01/00173(E1),ABS:01-LD234401C/2-PDA | |
IP66, IP67 & IP68 (when fitted with CMP sealing accessories) | |
黄铜、化学镀镍黄铜、铝、不锈钢 |
**参考Maintaining a Sealfor further information on Ingress Protection Ratings

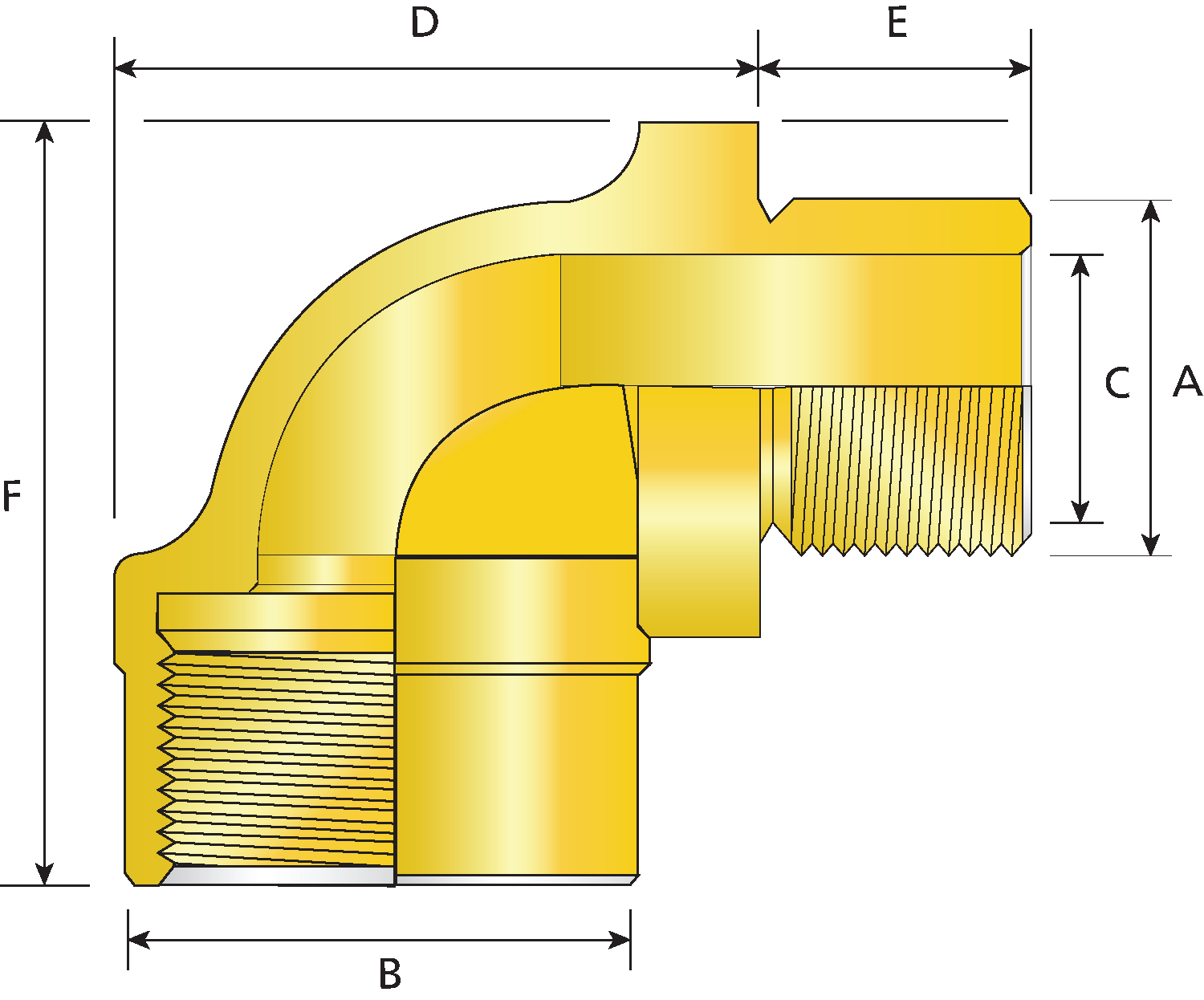

Ordering Reference | 男性螺纹尺寸“a” | 最小线程长度“e” | 孔径“C” | Female Thread Size | 突出长度“D” | Protrusion Length "F" | Width "B" | 安装扭矩(Nm) |
787平方米 | M20 X 1.5 | 0.602 | 0.551 | M20 X 1.5 | 1.165 | 1.614 | 0.945 | 0.276 |
787立方分米 | M25 X 1.5毫米 | 0.602 | 0.732 | M25 X 1.5毫米 | 1.429 | 1.941 | 1.142 | 0.394 |
787DM4M4 | M32 X 1.5 | 0.602 | 1.008 | M32 X 1.5 | 1.780 | 2.217 | 1.417 | 0.591 |
787DM5M5 | M40 x 1.5 | 0.602 | 1.323 | M40 x 1.5 | 2.134 | 2.551 | 1.732 | 0.984 |
787DM6M6 | M50 x 1.5 | 0.602 | 1.614 | M50 x 1.5 | 2.689 | 2.913 | 2.126 | 1.181 |
787DM7M7 | M63 X 1.5毫米 | 0.602 | 1.969 | M63 X 1.5毫米 | 3.819 | 4.106 | 2.965 | 1.772 |
787dm8m8. | M75 X 1.5毫米 | 0.602 | 2.413 | M75 X 1.5毫米 | 3.819 | 4.382 | 3.130 | 1.772 |
787dm9m9. | M90 X 2.0 | 0.602 | 3.150 | M90 X 2.0 | 3.937 | 5.169 | 4.331 | 1.772 |
787分米10 | M100 X 2.0毫米 | 0.602 | 3.583 | M100 X 2.0毫米 | 4.331 | 5.563 | 4.528 | 1.772 |
除非另有说明,尺寸单位为英寸 |
Ordering Reference | 男性螺纹尺寸“a” | 最小线程长度“e” | 孔径“C” | Female Thread Size | 突出长度“D” | Protrusion Length "F" | Width "B" | 安装扭矩(Nm) |
787平方米 | M20 X 1.5 | 15.3 | 14.0 | M20 X 1.5 | 29.6 | 41 | 24.0 | 7 |
787立方分米 | M25 X 1.5毫米 | 15.3 | 18.6 | M25 X 1.5毫米 | 36.3. | 49.3 | 29.0 | 10 |
787DM4M4 | M32 X 1.5 | 15.3 | 25.6 | M32 X 1.5 | 45.2 | 56.3 | 36.0 | 15.0 |
787DM5M5 | M40 x 1.5 | 15.3 | 33.6 | M40 x 1.5 | 54.2 | 64.8 | 44 | 25.0 |
787DM6M6 | M50 x 1.5 | 15.3 | 41 | M50 x 1.5 | 68.3 | 74 | 54 | 30 |
787DM7M7 | M63 X 1.5毫米 | 15.3 | 50 | M63 X 1.5毫米 | 97 | 104.3 | 75.3 | 45 |
787dm8m8. | M75 X 1.5毫米 | 15.3 | 61.3 | M75 X 1.5毫米 | 97 | 111.3 | 79.5 | 45 |
787dm9m9. | M90 X 2.0 | 15.3 | 80.0 | M90 X 2.0 | 100 | 131.3 | 110 | 45 |
787分米10 | M100 X 2.0毫米 | 15.3 | 91.0 | M100 X 2.0毫米 | 110 | 141.3 | 115 | 45 |
除非另有说明,否则尺寸单位为毫米 |
