旋风II标准职责2带式电缆夹板，带不锈钢基地

The Cyclone II Strap cable cleats are metallic cable cleats consisting of a fabricated 316L stainless steel base and a stainless steel strap which have been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ IEC 61914. The Cyclone II Strap cable cleats ensure the retention and securing of cables, whilst preventing damage to the cable when in normal operation or in the event a short circuit fault condition.

电缆夹板188博金宝备用地址188博金宝网站下载允许各种应用，包括杂项。它们具有出色的重叠范围，并在与市场上的更加刚性的电缆夹板相比，使最终用户更具灵活性。188博金宝网站下载188博金宝备用地址每个电缆夹板都能够固定各种电缆

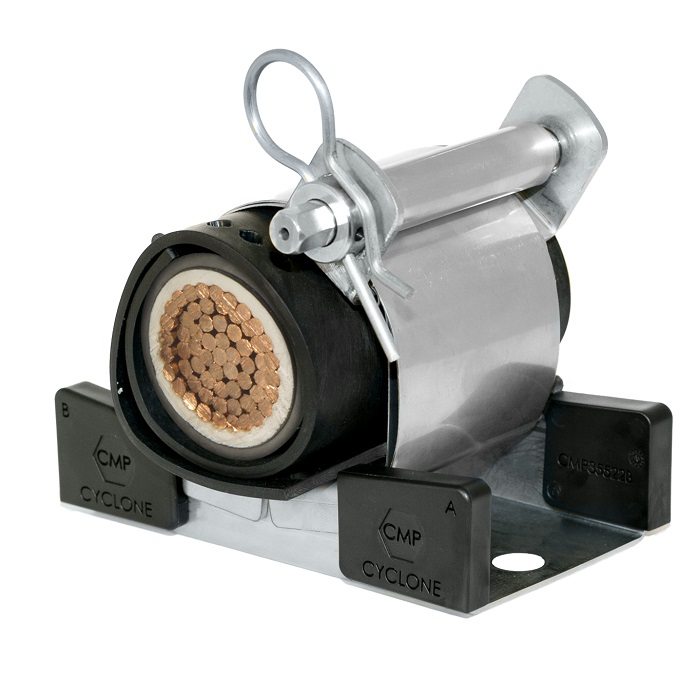

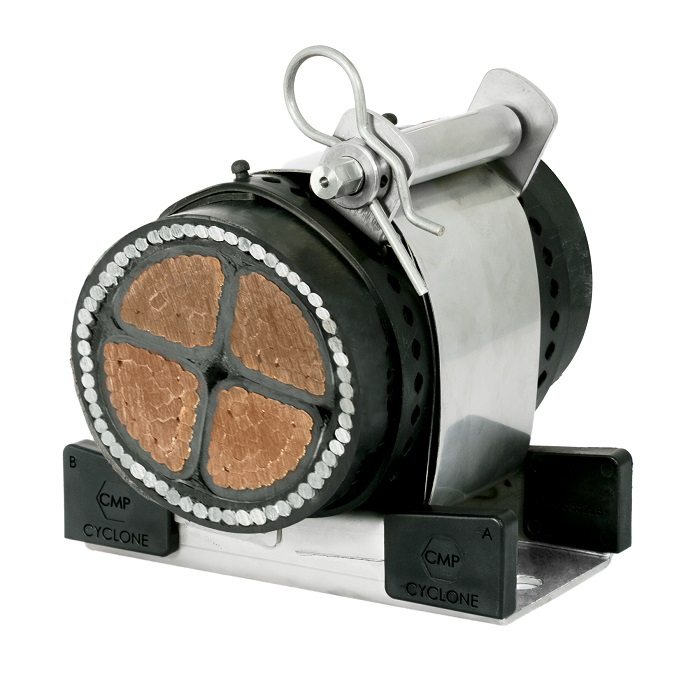

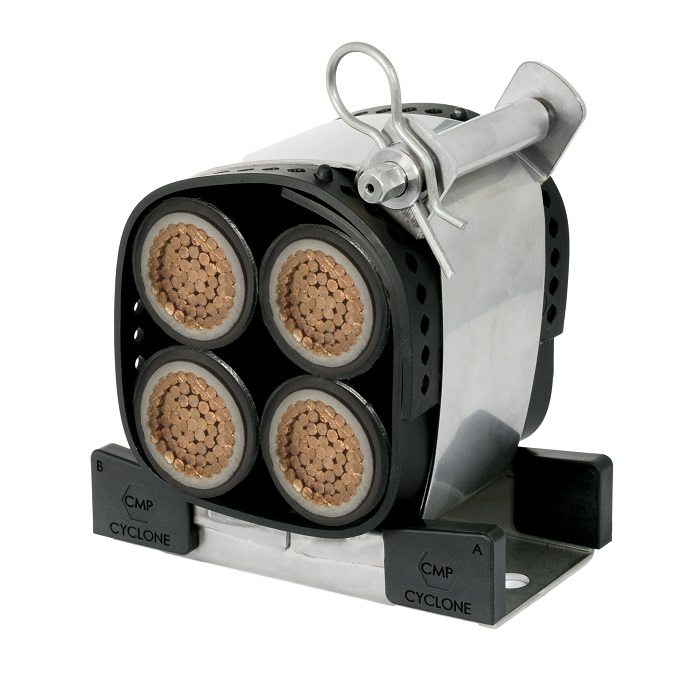

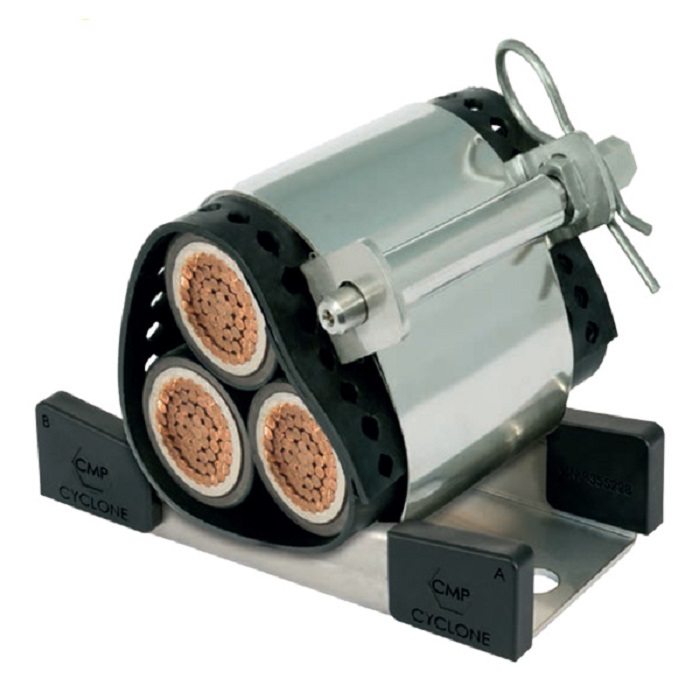

结构，例如单个电缆（多芯）或单个电缆，平行地层，三叶草形成和四边形。适用于单电缆应用直径为10尺寸为36毫米至165mm，在15米至145毫米的三尺和145毫米的三尺寸和十六米以上的15米至124mm，15尺寸为15尺寸。

设计并测试Cyclone II表带电缆夹板以在中等短路力期间牢固地抑制电缆，其带子设计成两次缠绕电缆。

The Cyclone II base is manufactured from 316L stainless steel, giving the cable cleats high creep strength and excellent corrosion resistance. The Cyclone straps are manufactured in 316L stainless steel providing excellent corrosion resistance, and the tensioned straps act as a coil during short circuit conditions to restrain the cable. The Cyclone strap wraps around the angled Cyclone II stainless steel base ensuring the cables are always kept central, the strap is fastened to a stainless steel pin with a hexagon shaped head at one end allowing fast, easy installation via the use of a ratchet, power tool or other suitable mechanical device.

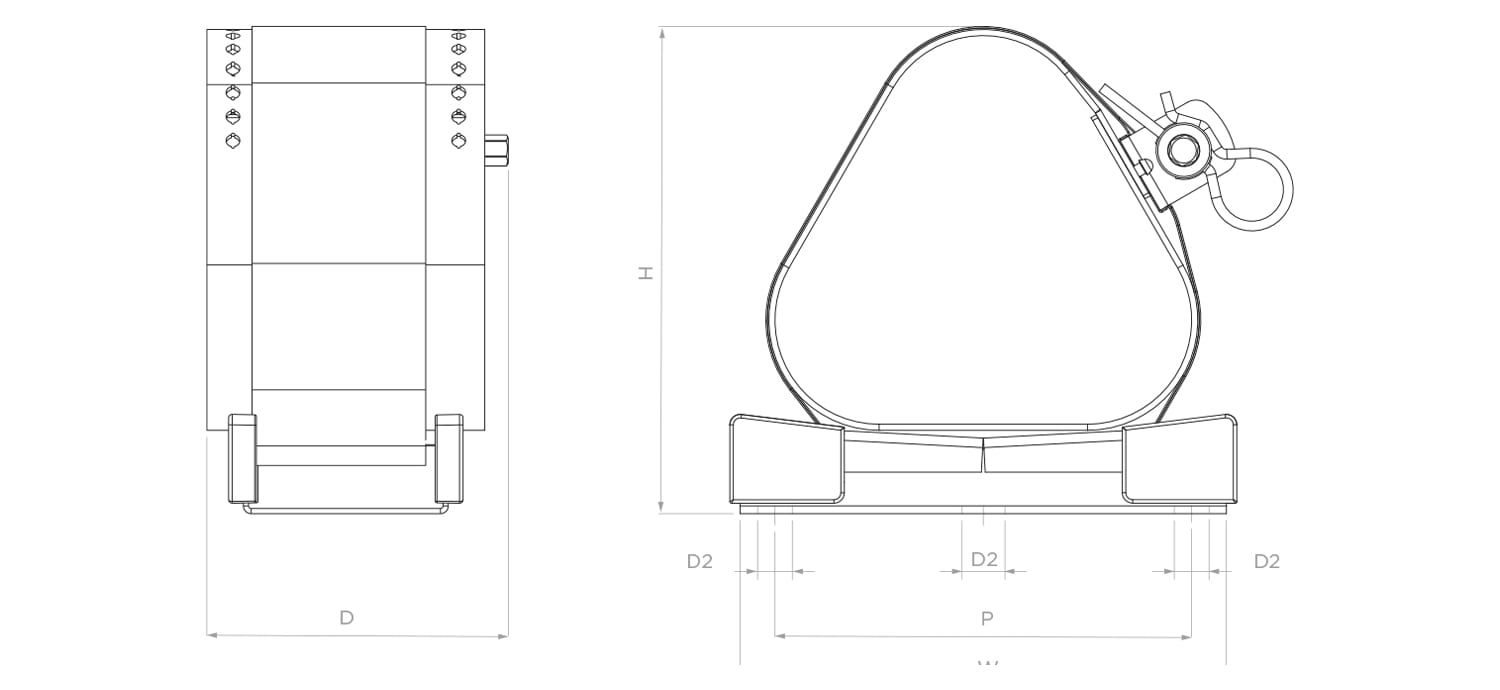

The Cyclone II Strap cable cleats have one M12 and two M10 fixing clearance holes within the base, allowing versatile installation, and enabling the product to be secured to a variety of mounting surfaces. Due to the design of the Cyclone, the cables do not need to be lifted and placed in to the cable cleat, instead the cables are placed on to the bases and the Cyclone straps then wrap around the cables securing them to the mounting surface of the base.

Cyclone II电缆夹板和188博金宝备用地址188博金宝网站下载旋风中间带配有标准衬垫，其分类为低烟和烟雾（LSF），零卤素（LS0H）和无磷。通过将HT后缀添加到订购代码，可提供高温版本的衬里。衬里有助于抑制垂直应用内的电缆，在正常操作期间提供电缆护套和旋风不锈钢表带和基座之间的一层保护，其中电缆的热伸长率。由于诸如船上和海上应用中的差速器，并且在短路条件下，衬里还防止电缆在任何安装表面上弯曲任何安装表面。

旋风带设计成用作两个旋风电缆夹板之间的中间约束（如适用），以将电缆结合在一起，使得具有成本效益，易于应用的固定系统。188博金宝网站下载188博金宝备用地址与替代电缆夹板相比，使用旋风II和旋风中间限制可替代地将安装时间和成本显着降低。

Features

• 第三方认证IEC 61914
• 316L不锈钢底座，带不锈钢表带
• 151KA峰值故障的短路额定值
• 标准工作温度-50°C至+ 40°C
• 标准衬垫是LUL批准的并且被归类为低烟和烟雾（LSF），零卤素（LS0H）和磷
• 高温衬里版本带有HT后缀的工作温度-50°C至+ 90°C
• 高温衬垫被分类为V0阻燃聚合物
• Combined single (M12) and two bolt (M10) base fixing design

P.atents granted: AU 2012307291, CN 201280044723.0, DE 2571125, SP 2571125, FR 2571125, HU 2571125, IT 2571125, KR 1663493, NL 2571125, NO 2571125, SG 11201400298Q, TR 2571125, GB 2571125, US 9353892
